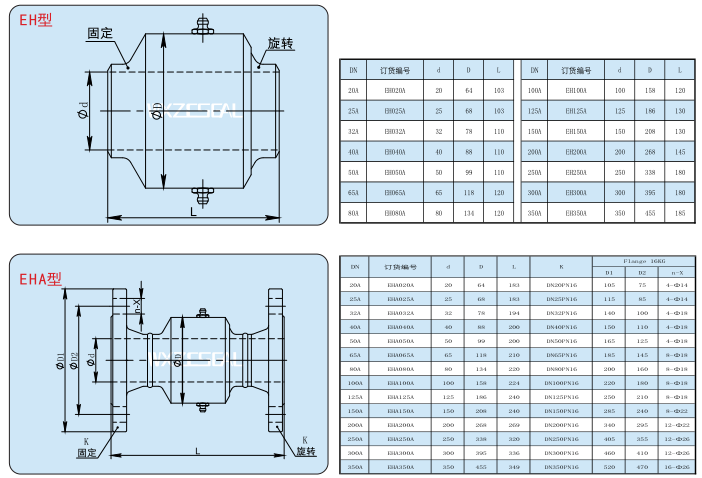

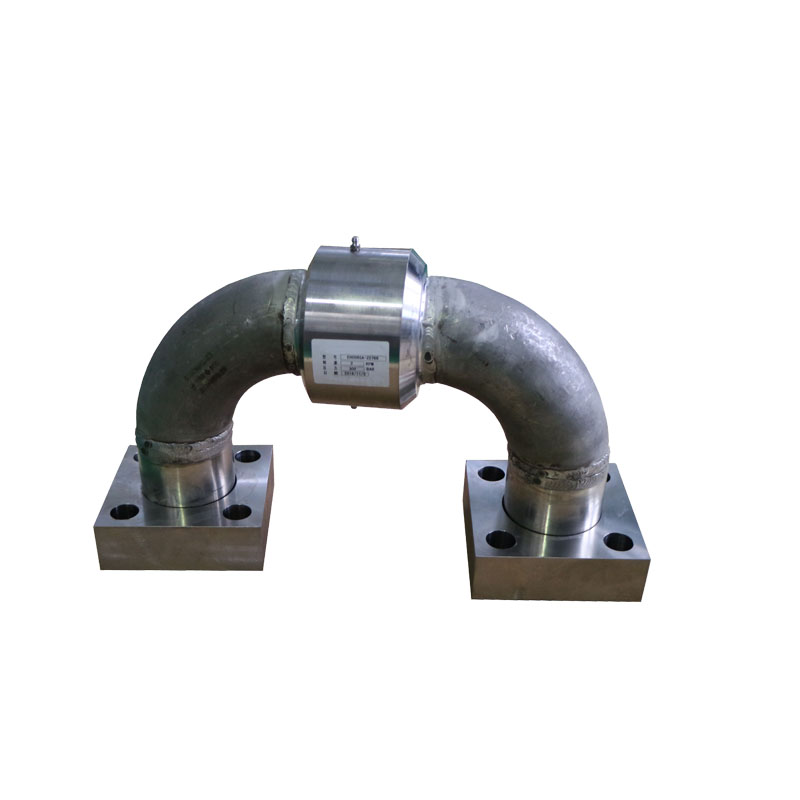

The EH series swivel joint is a movable joint for swinging between rigid pipes or rotating at low speeds.
Its interior is supported by two rows of steel ball bearings, Smooth rotation, long service life of special seals.

Technical parameters:

Maximum speed: 2 RPM/min
Operating temperature :-30 ~ 121 ℃
Max  pressure: 5Mpa
Medium: oil, water, air

Note: The maximum pressure is 42Mpa, designed for customer need.

Product feature:

• Two rows of precision steel ball support, stable operation, no swing.
• Bearing inside prefilled with bearing grease, Lifetime maintenance-free.
• Special sealing ring, custom withstand up to 42Mpa.

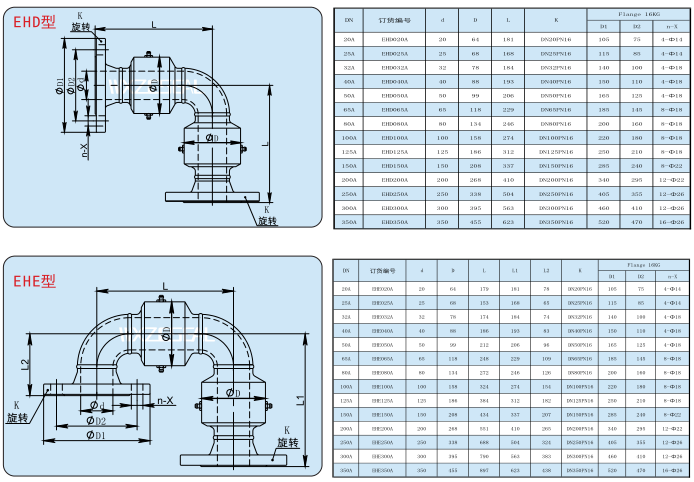

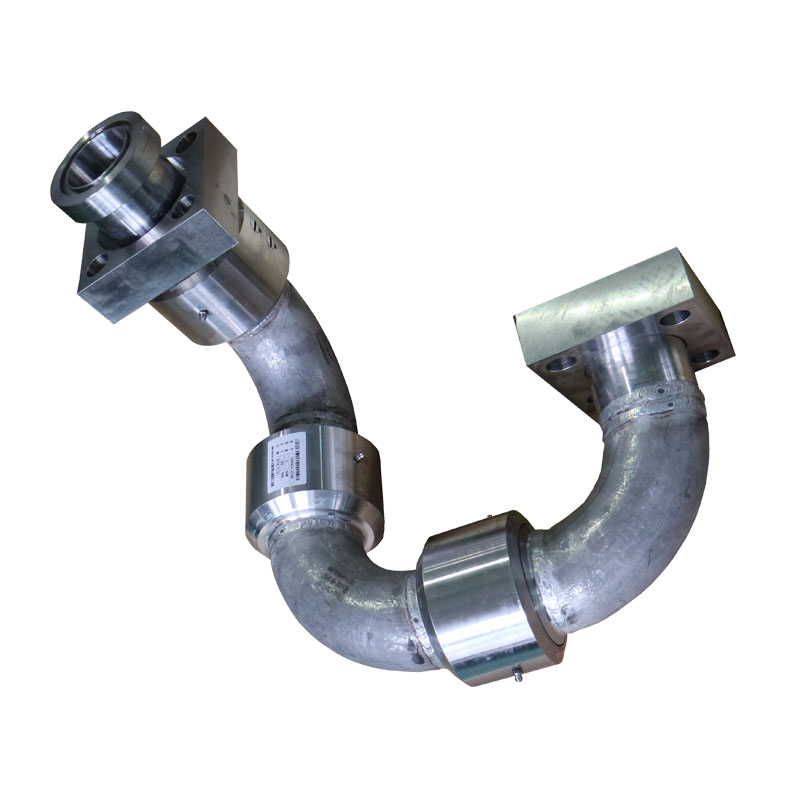

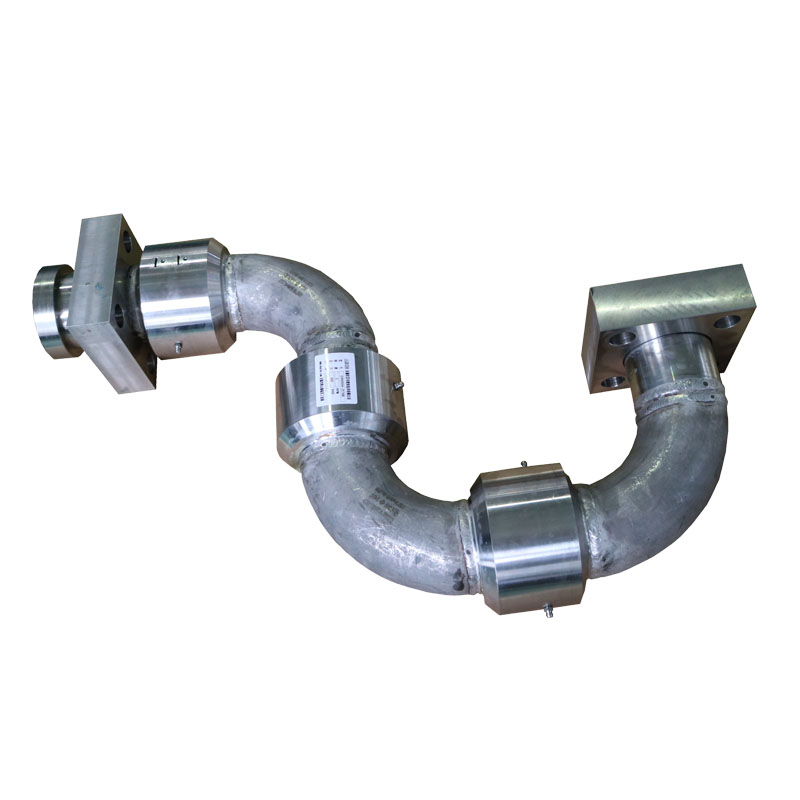

• Has a variety of joint combination styles, a variety of joints can meet the complex space rotating transmission media under field conditions.

Noted:

The pipe swing joint is not suitable for long rotation and continuous rotation; Flammable, explosive, toxic or corrosive media are strictly prohibited; The main material can use carbon steel, SUS304, SUS316L, etc; Standard model material is carbon steel, other materials need to be specified.
